Lined liquid level gauges

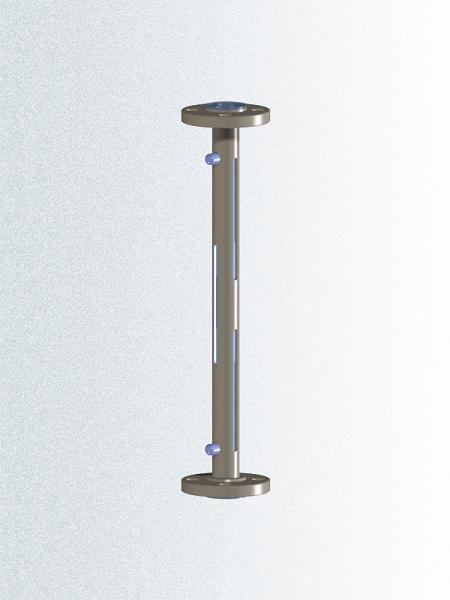

The FLOWTEF^® static level gauge assembled between two flanged connected to a storage tank gets  a clear indication of the level inside. The system is composed by  a SS304L one piece tube with three series of longitudinal 90° millings, two ends of the metallic tube are flared to obtain a flat face without welding, the inner tube and flange faces are lined by translucent virgin Teflon/FEP with minimum thickness 3.2 mm and stainless steel 304L DIN or ANSI flanges. To allow a level viewing from distance, the level gauge can be provided with an antistatic PTFE  float. The rugged design and the thick liner make it suitable also for the visual indication of highly corrosive media.

Wide range of customization of the level gauges according to the specific needs of the customer.
