Sight glasses

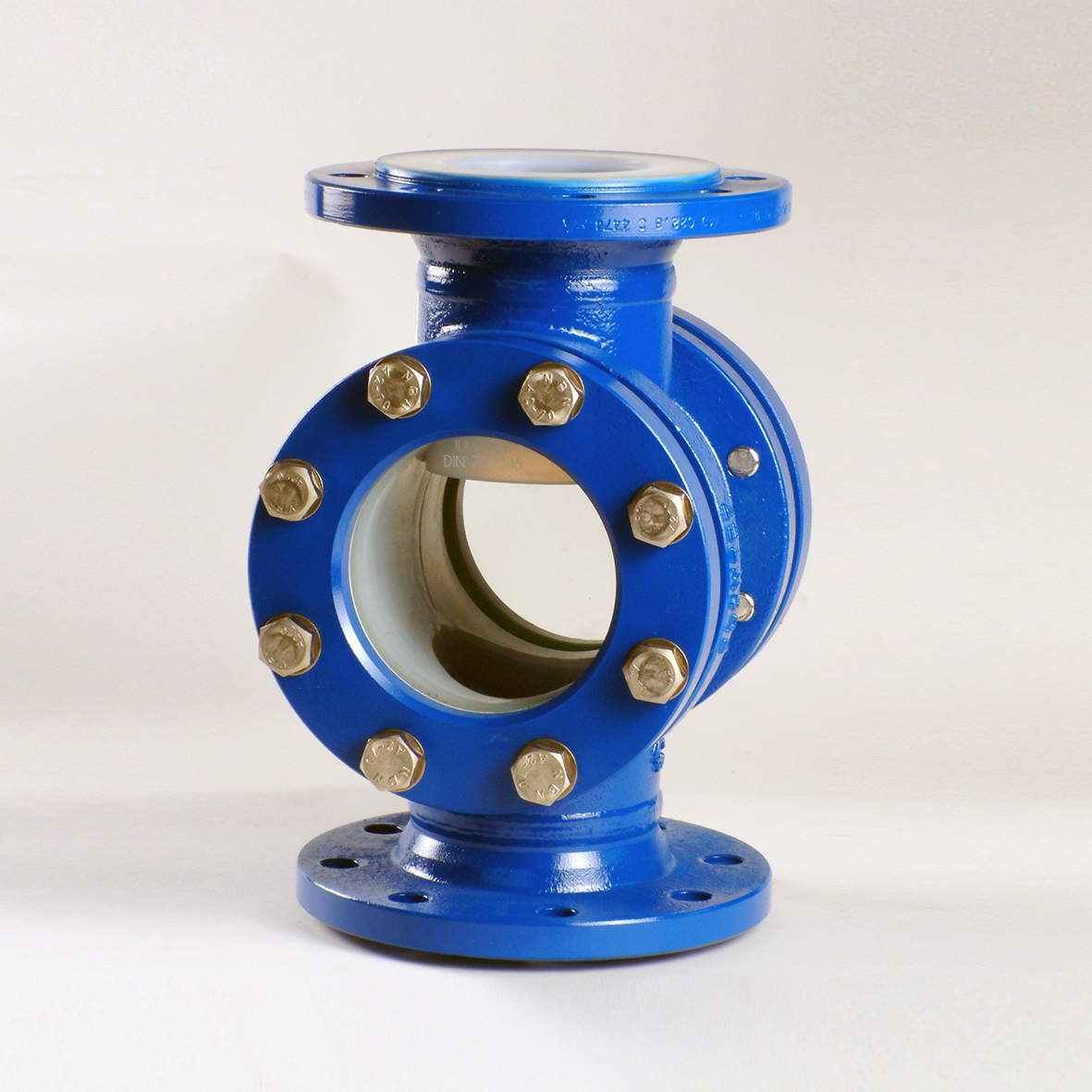

Bulls eye sight glasses – SGF
The lined bulls eye sight glasses are used for monitoring the flow in pipelines where a wide range of critical, corrosive or toxic fluids circulate.
These PFA fluoropolymer lined sight glasses provide a clear view to verify the flow of liquids through the double heavy wall borosilicate glass windows. The SGF sight glasses are suitable for the connection with flanges accordig to DIN EN 1092-1 or ANSI B16.5 150/300 class from DN 15-½” to DN 250-10”.

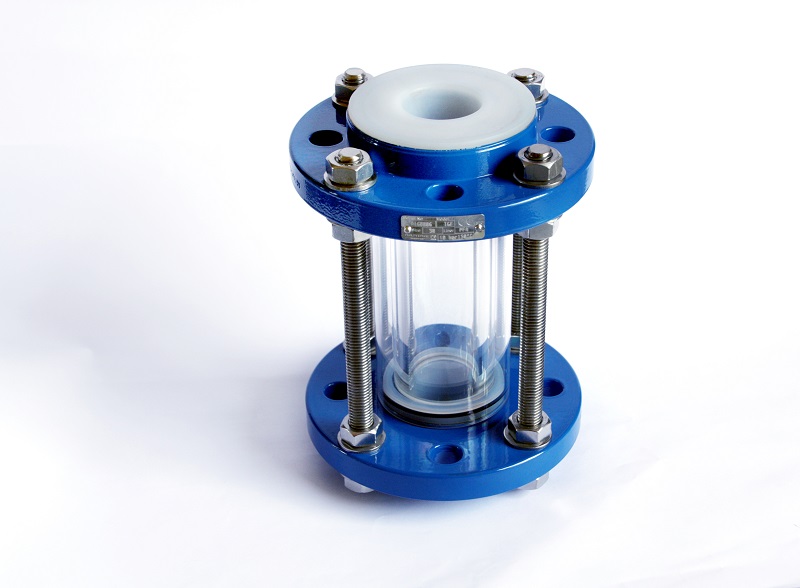

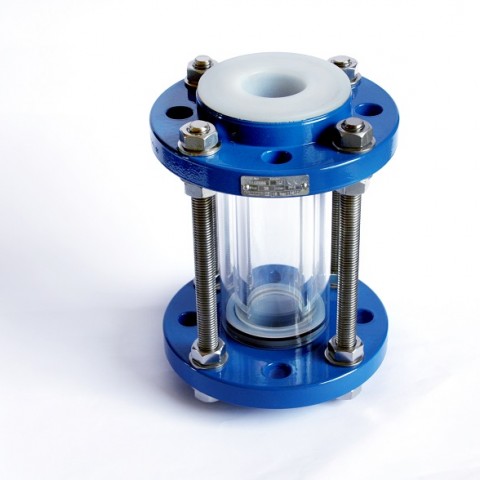

Tubular sight glasses – TGF
The lined tubular sight glasses are used for monitoring the flow in pipelines where a wide range of toxic, corrosive, colored or high-purity fluids circulate.
These PFA lined tubular sight glasses provide a quick, reliable and economical way to verify from any direction the flow of liquids through the pipelines in any industrial process. They can be installed vertically or horizontally and are suitable for the connection with flanges according to DIN EN 1092-1 or ANSI B16.5 150/300 class from DN 25-1” to DN 200-8”.

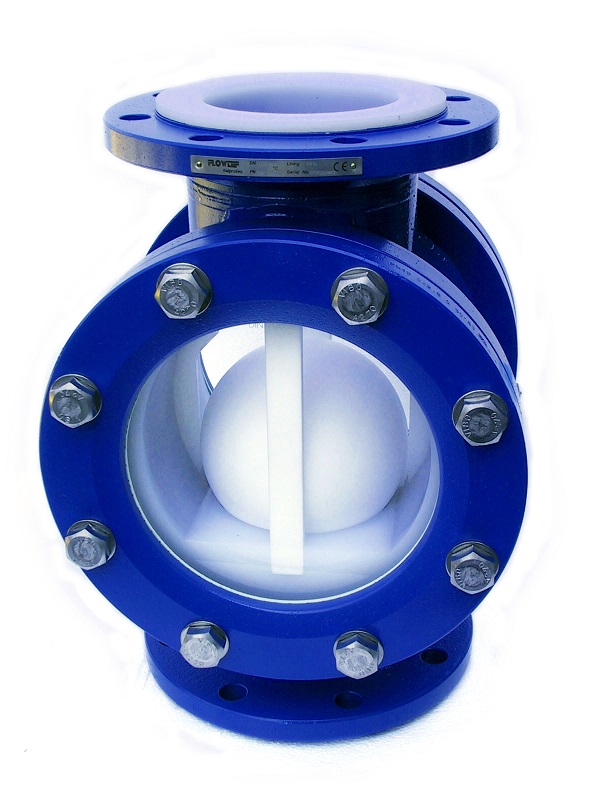

Glass-ball check valves – CSF
The check valves with sight glass are used for flow monitoring in pipes in a wide range of applications with corrosive and toxic processes.
These valves lined with PFA-fluorine polymer combine the characteristics of the non-return valve and sight glass for a clear view of the passage of fluid thanks to heavy wall borosilicate glass.
The CSF valves are suitable for connecting flanges DIN EN 1092 or ANSI B16.5 DN 25/1 “to DN 150-6”.
Technical specifications can change without notice.
