Lined Ball valves, diaphragms valves, butterfly valves, accessories and components

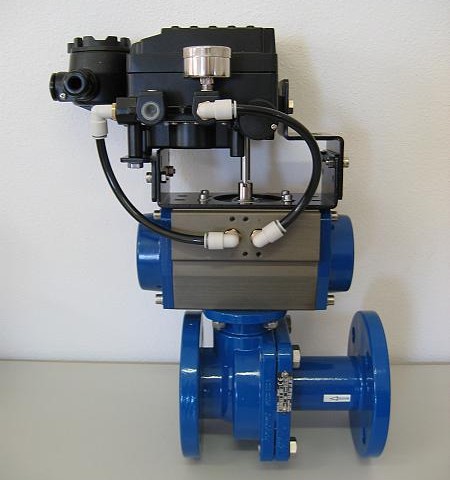

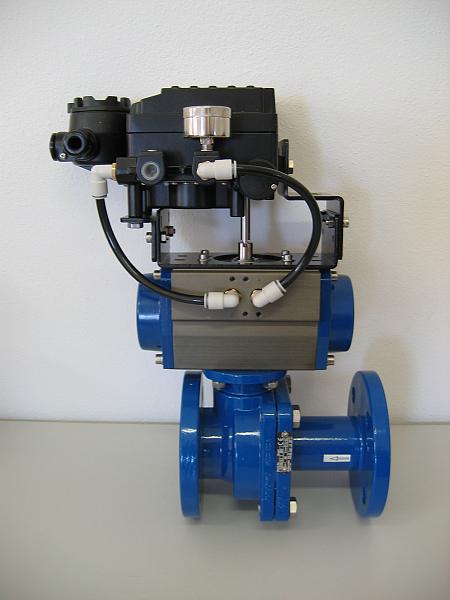

IBV Ball valves
Available from DN 15 to DN 300 flanged PN 10/16 or ANSI 150 the lined ball valve represents the ideal choice for controlling the flow of highly corrosive media. PFA lining is “keyed” to the body to assure a safe and reliable usage even under full vacuum conditions. As options, stainless steel body, ceramic ball and special preparation for chlorine service are available. Alternative linings are FEP and PVDF.

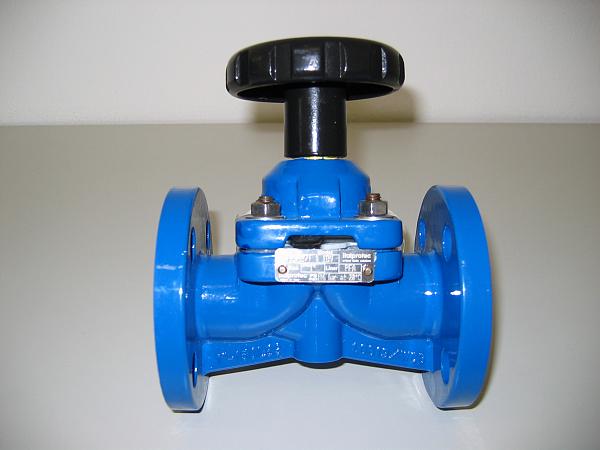

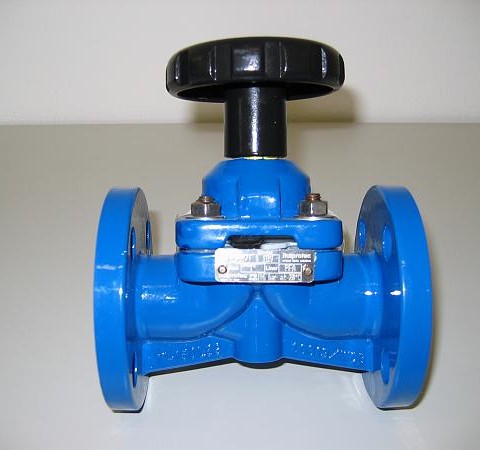

IDV Diaphragm valves
Available from DN 15 to DN 200 flanged PN10/16 or ANSI 150 lined in PFA or PP. Diaphragm valves are ideally suited for pharmaceuticals applications where the absence of dead spaces, the smooth lining-surface and easy-cleaning are essential requirements.

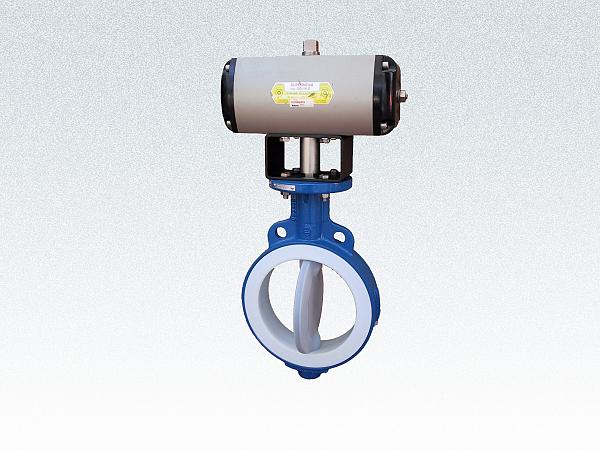

IFV Butterfly valves
Available from DN 25 to DN 600 with various combinations ofpossible materials to the lining of the body and the disc. Construction design can be wafer or with threaded holes (lug) for installation between flanges PN 10/16 or ANSI 150 lbs. Valves are absolutely leak free ensuring safety and a long-term performance even under extreme conditions of corrosion, abrasion and temperature fluctuation.

if needed all valves  can be supplied with single or double acting pneumatic actuators, limit switch boxes, solenoid valves, positioners and other accessories.
